Pressure vessel-operated PC series
Blastjet Oy manufactures and sells durable pressure vessel-operated PC-series shot blasting cabinets. Our range also includes ejector-operated E-series and ejector-operated EC-series devices, as well as various automated and customized solutions.
Pressure vessel-operated PC series
The BJ-PC series cabinets have an adjustable cyclone separator that separates dust from the blower, and efficient ventilation that allows good visibility of the work site.
In pressure vessel operation, the blowing material is in a pressurized vessel, from which it is transferred by pressure along a hose to the venturi nozzle and from there to the blowing target. The PC series has a pressure vessel blowing pressure hold, so that the pressure does not leave the vessel between blowing cycles, but can be continued without interruption. Pressure vessel operation can have up to four times the blowing power compared to ejector operation. The PC series has micro-dust filters cleaned with compressed air pulse, and an electric chamber vibration with a push button.
Standard cabinet sizes:
BJ-PC10F:
Internal dimensions of the cabinet approx. WxDxH = 970 x 970 x 900
External dimensions approx. WxDxH = 1620 x 1620 x 2350
Doorway 735 x 735
Table options include a fixed perforated plate with a perforated rubber mat or a Ø 700 bearing-mounted, partially or fully extendable table top.

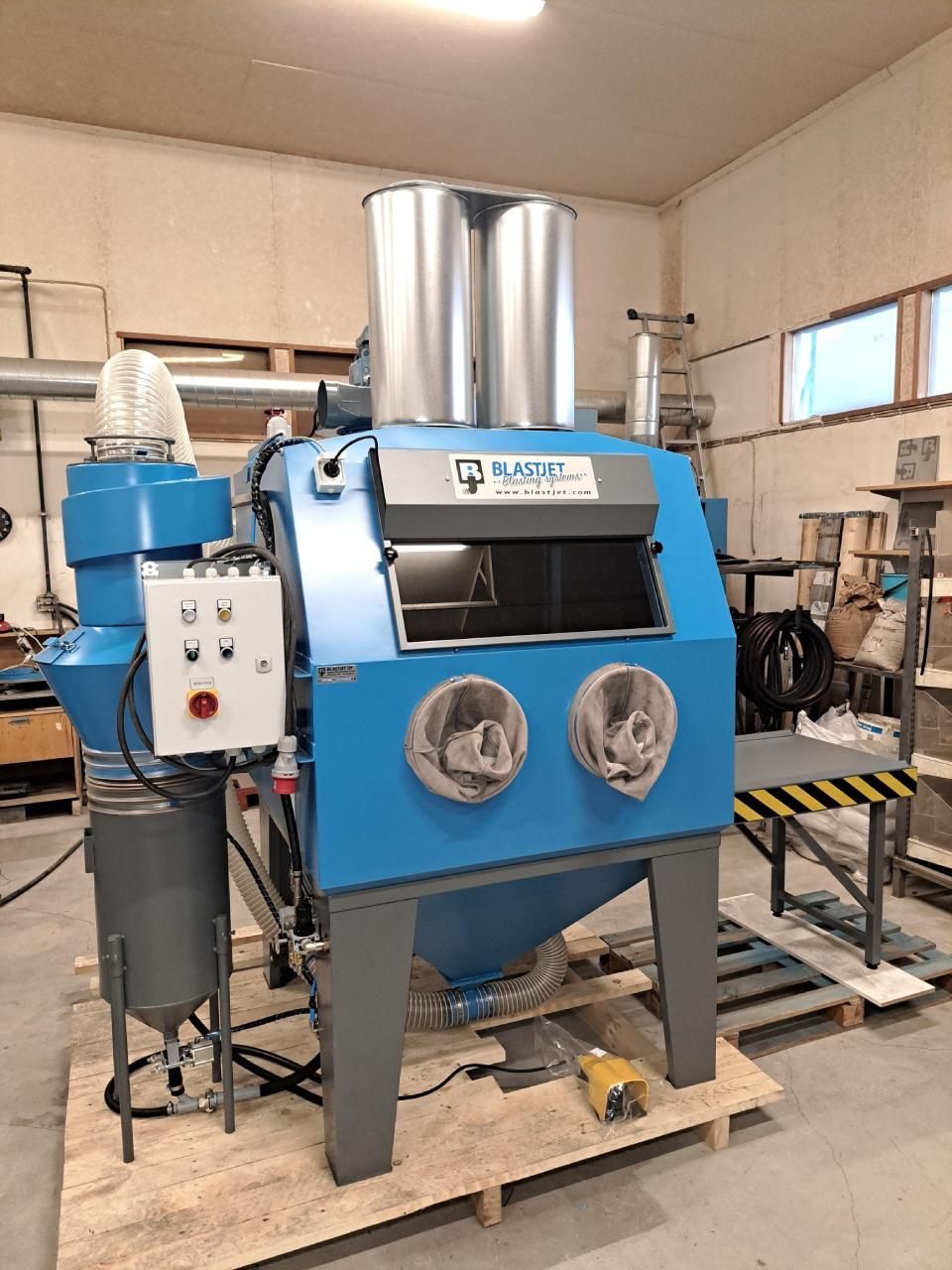

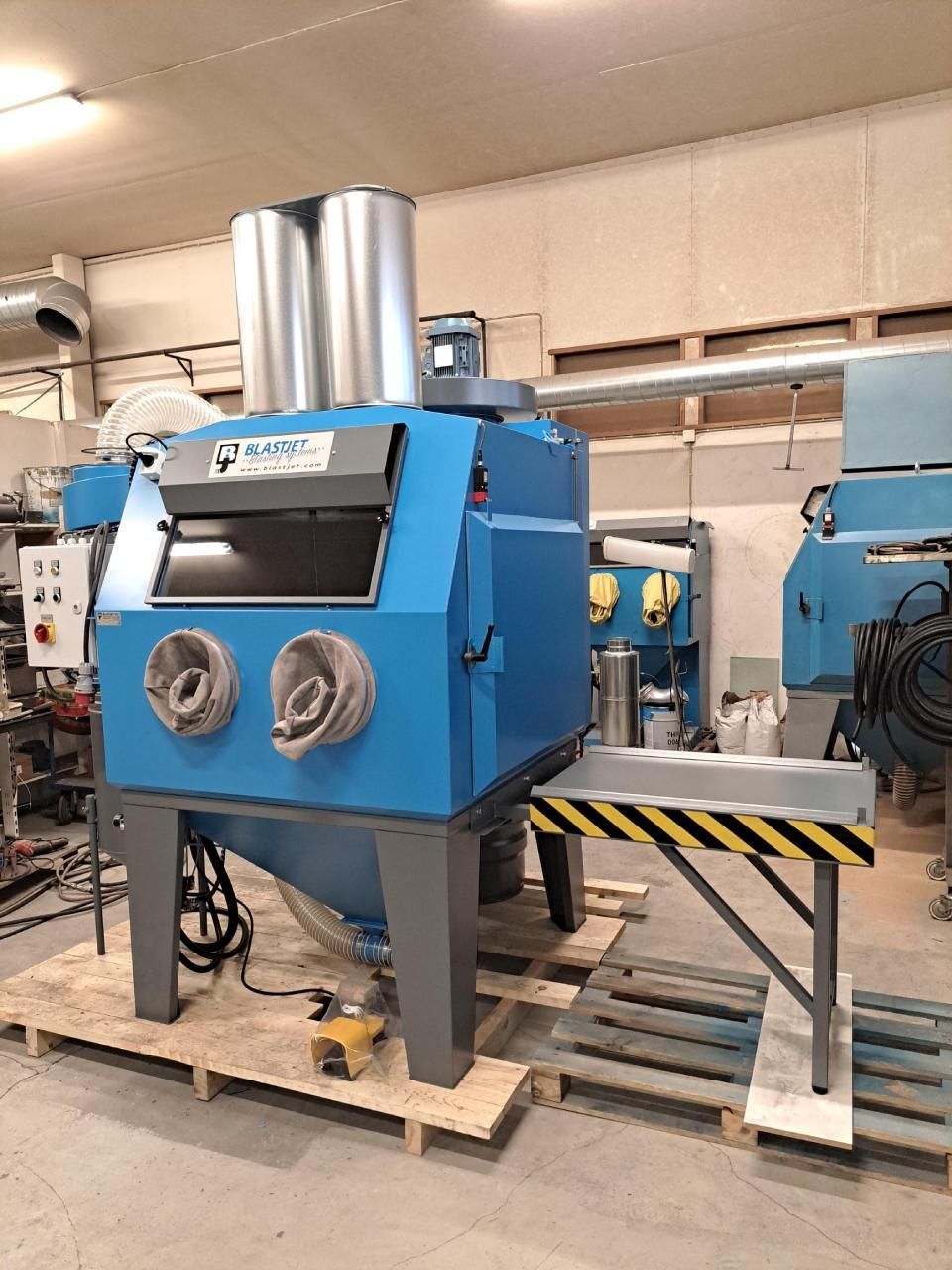

BJ-PC12F:
Internal dimensions of the cabinet approx. WxDxH = 1220 x 1220 x 1000
External dimensions approx. WxDxH = 1870 x 1870 x 2400
Doorway 950 x 790
Table options include a fixed perforated plate with a perforated rubber mat or a Ø 900 bearing-mounted, partially or fully extendable table top

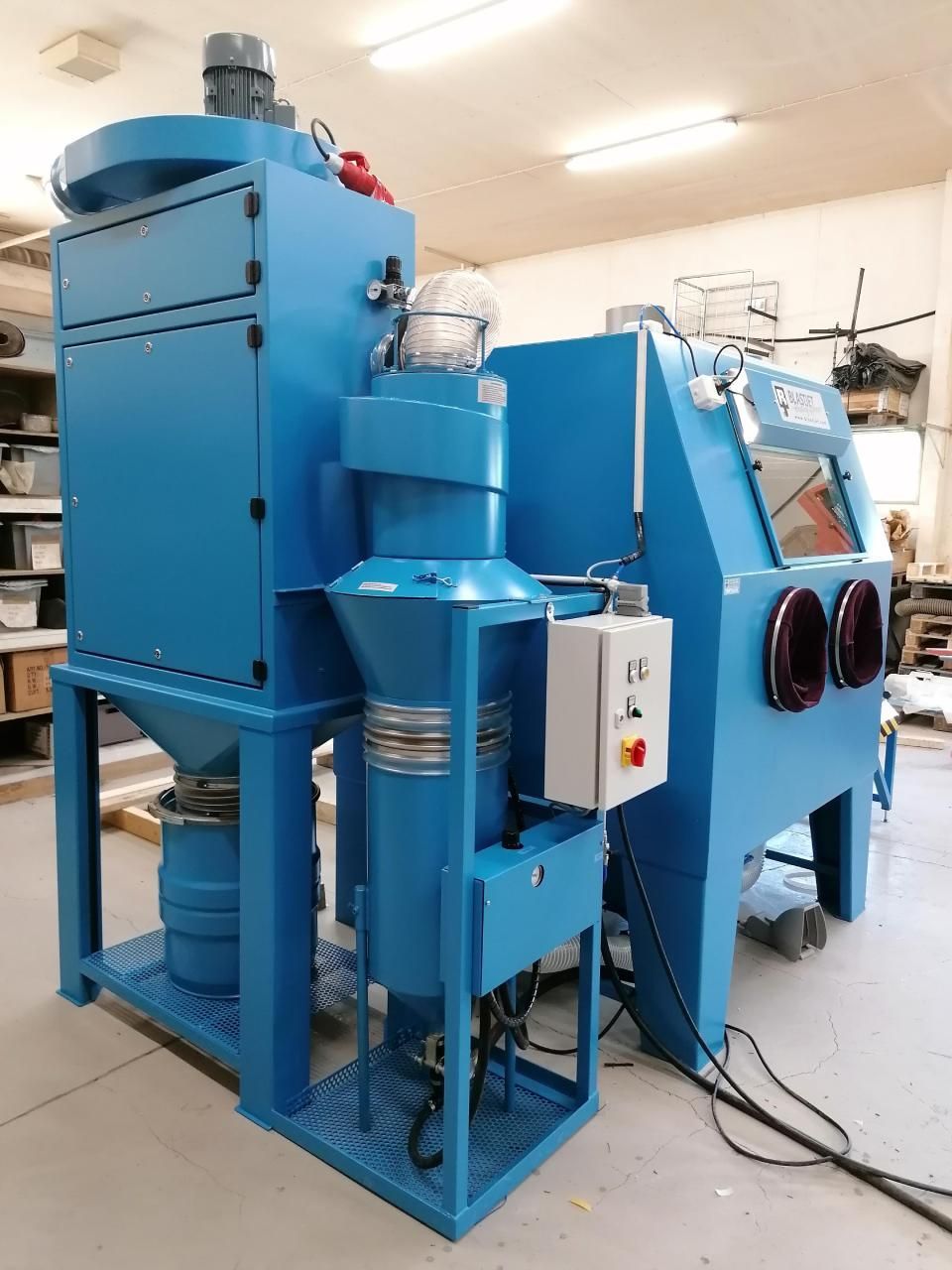

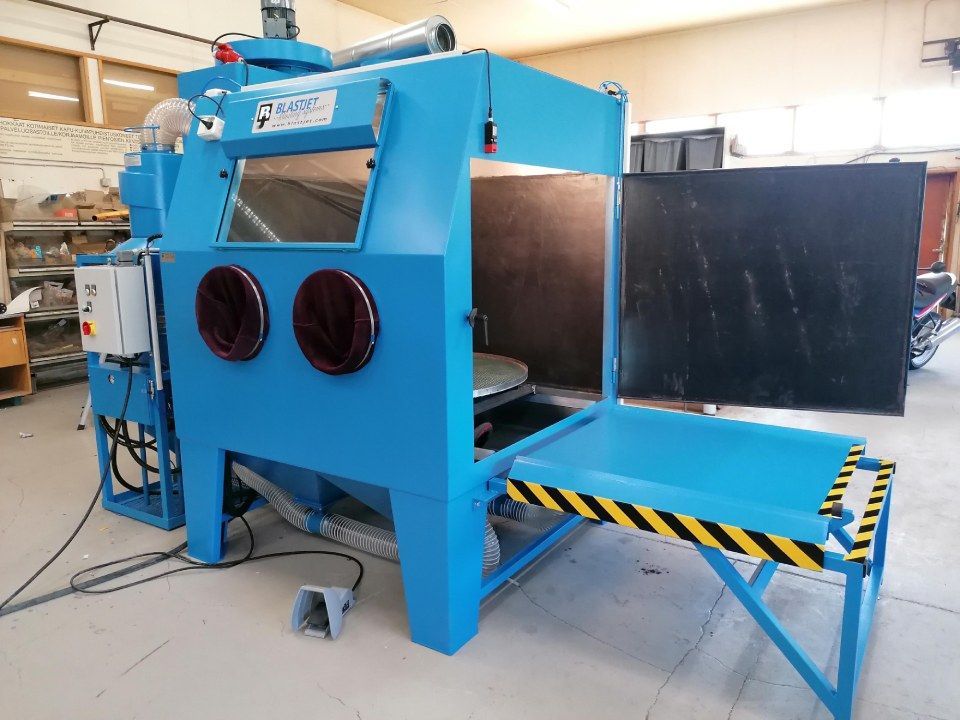

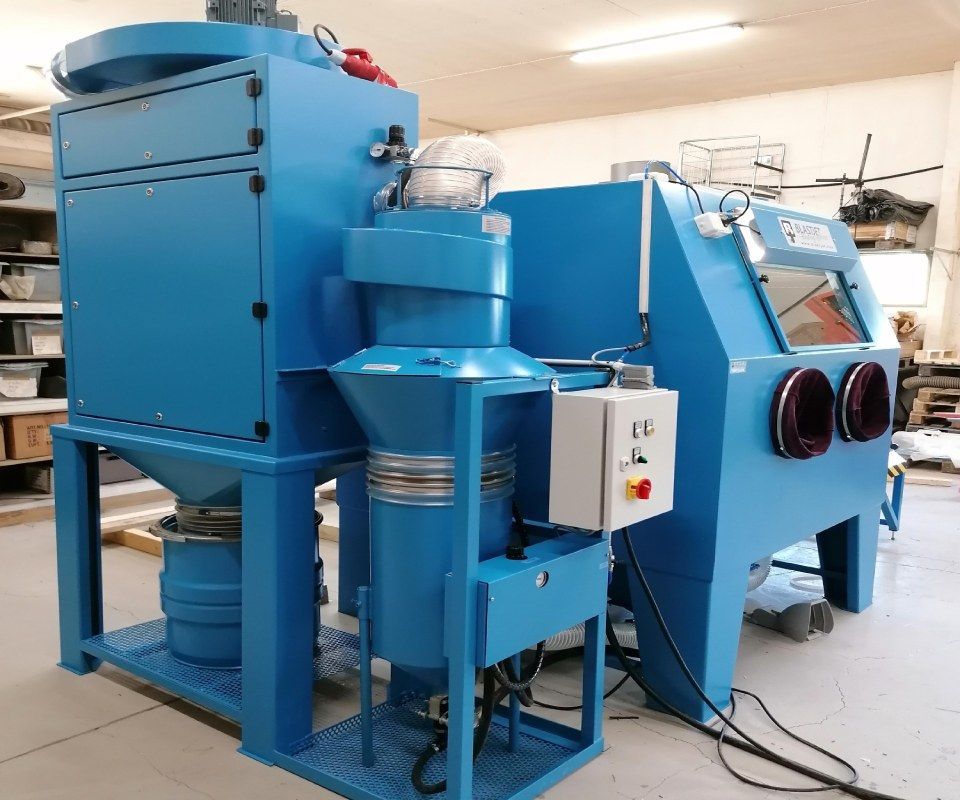

BJ-PC15 F3:
Internal dimensions of the cabinet approx. WxDxH = 1500 x 1500 x 1200
External dimensions, cabinet approx. WxDxH = 1600 x 1550 x 2000, filter/pressure vessel/cyclone unit approx. WxDxH = 700 x 1600 x 2500
Doorway 1200 x 1200
Table options include a Ø 1100 bearing-mounted, partially or fully extendable table top with perforated rubber mat
Our cabinets are always delivered tested and ready for use.
We deliver durable pressure vessel-powered PC series devices from Hämeenkyrö to all of Finland.
